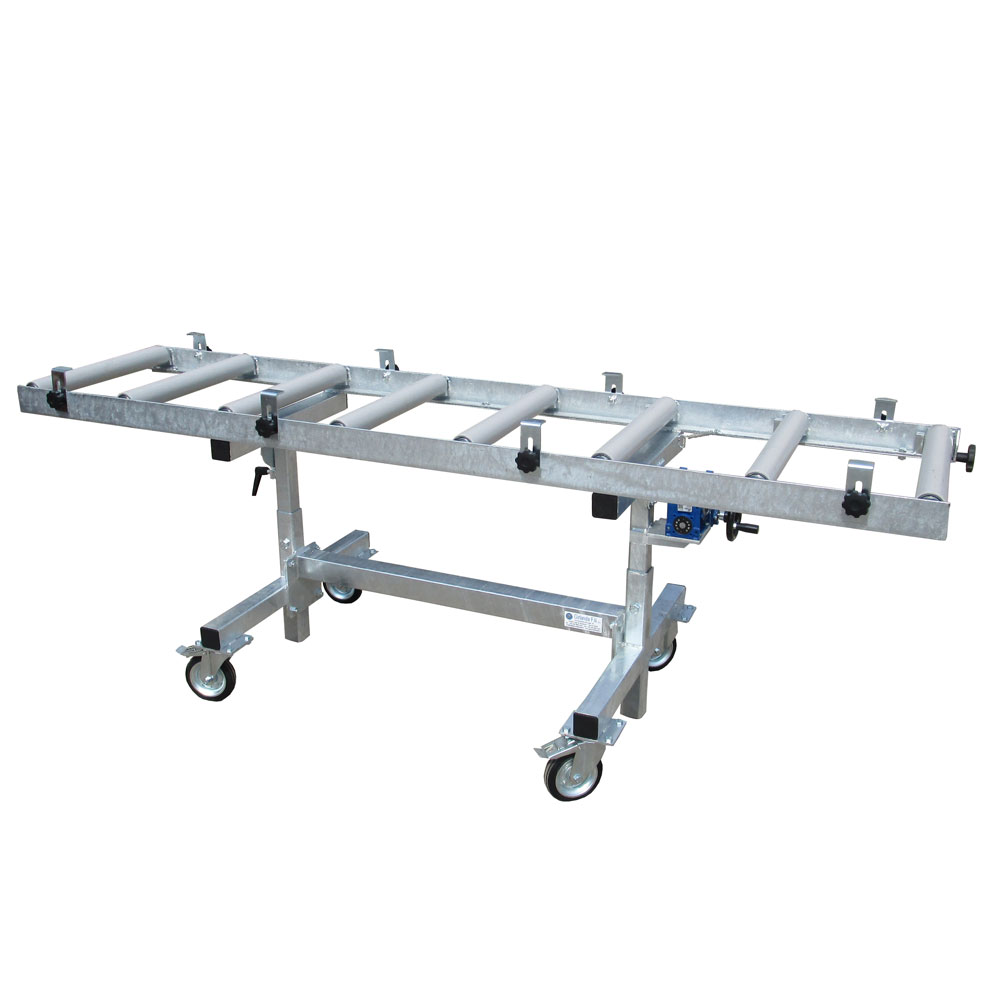

Tilting galvanized steel trolley

Art. GF30/92

The trolley is an accessory designed and built to move and work kitchen or bathroom countertops.


Description

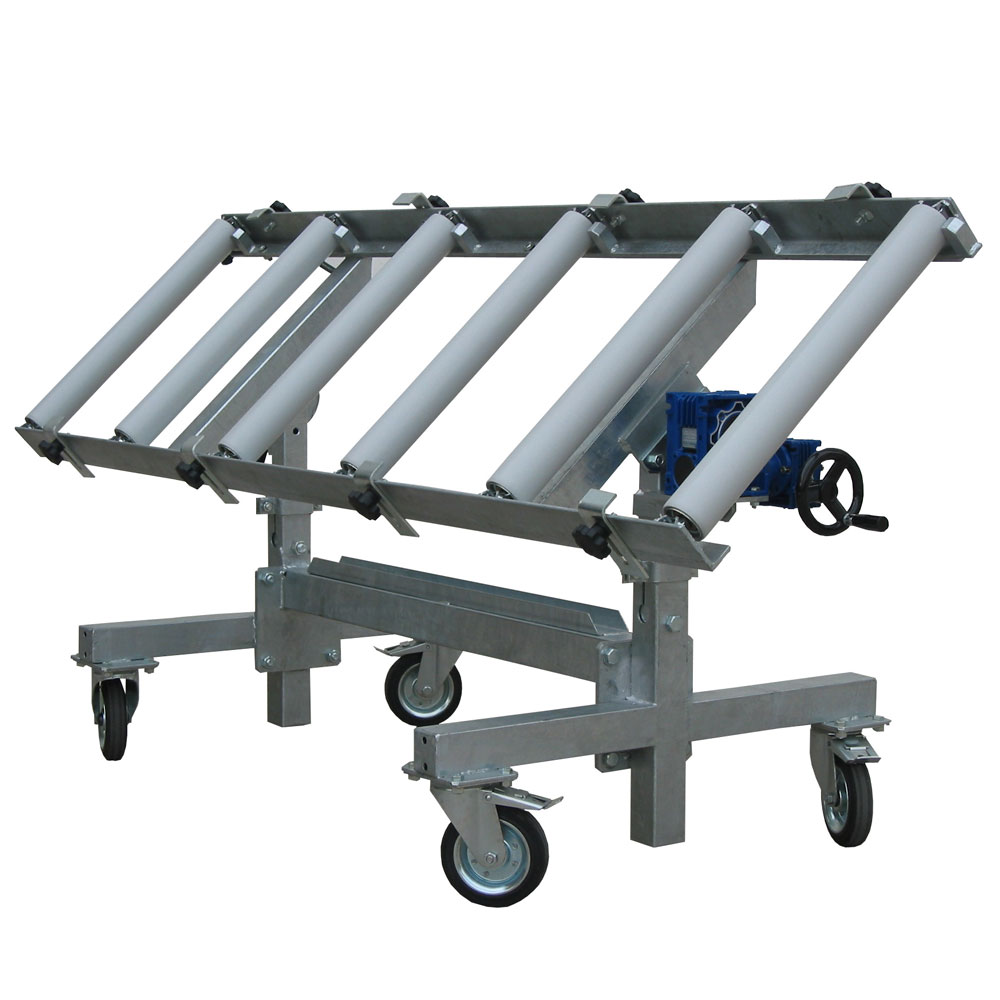

The trolley is equipped with a gearmotor to tilt the worktop from one side or the other 180°. The trolley is equipped with 4 swivel wheels with brake diameter 150 with double ball bearing sliding.
The trolley can be adjusted in height by means of a pin. It is available galvanized or dip-painted.
The trolley is built in 2 models or made to measure to meet any need.

The product complies with the regulations:

  • Machinery Directive 2006/42/CE and following integrations.

Technical characteristics

  • Basic supporting structure in steel profiles
  • Tilting structure in steel profiles
  • Rubber covered rollers for the sliding of the piece
  • Gearmotor for tilting the support surface
  • 4 swivel wheels with brake diam. 150

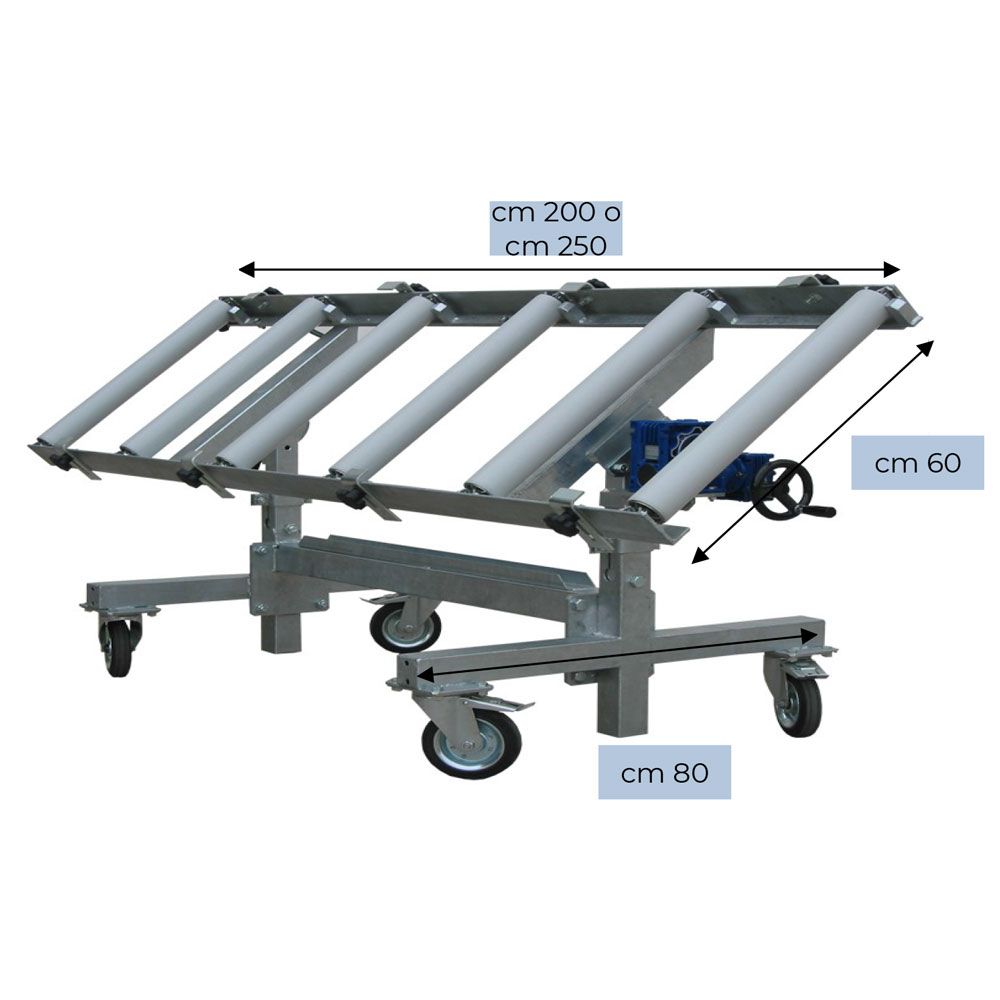

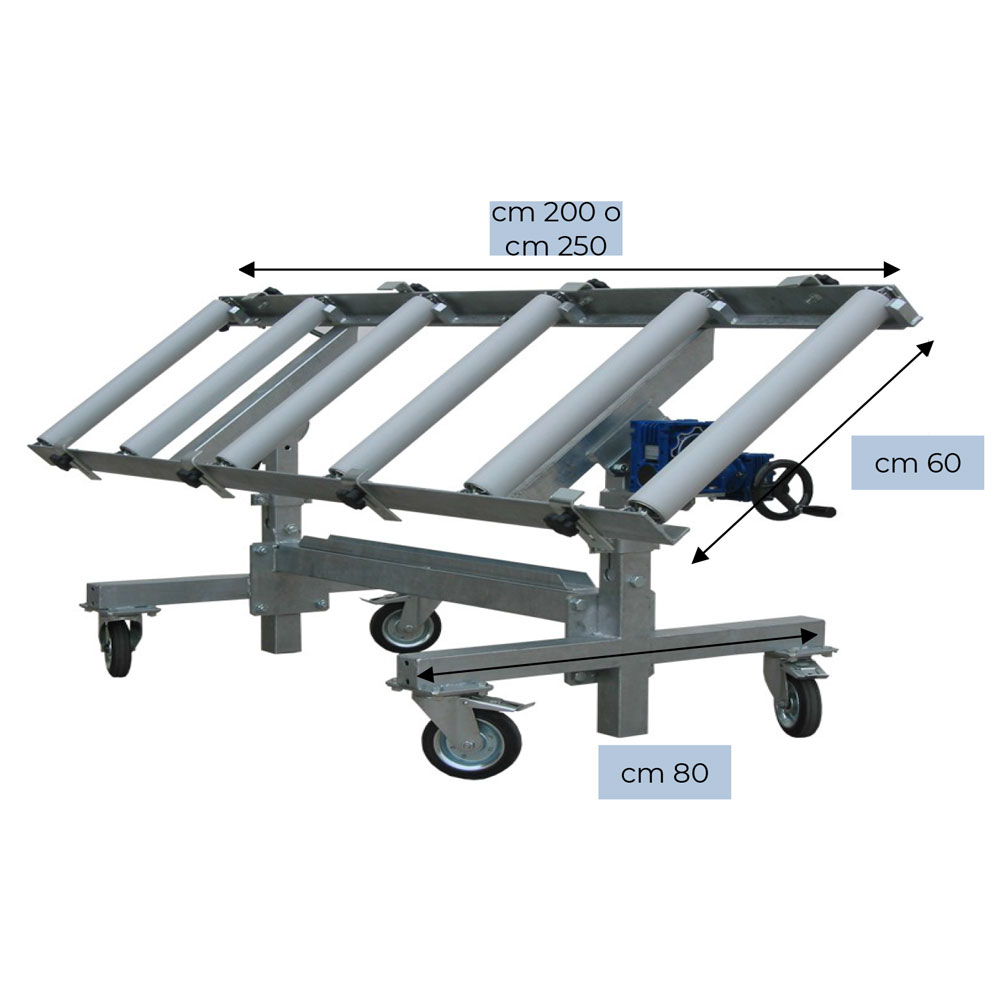

Measures and models

Model 200 cm

Maximum load daN(~kg)

400

Length mm

2000

Width at base mm

800

Width of support surface mm

600

Min-max height mm

830-980

Wheels diameter mm

150

Mass (weight) kg

102

Modello 250 cm

Maximum load daN(~kg)

400

Length mm

2500

Width at base mm

800

Width of support surface mm

600

Min-max height mm

830-980

Wheels diameter mm

150

Mass (weight) kg

115
