Tilting painted steel trolley

Art. GF30/04

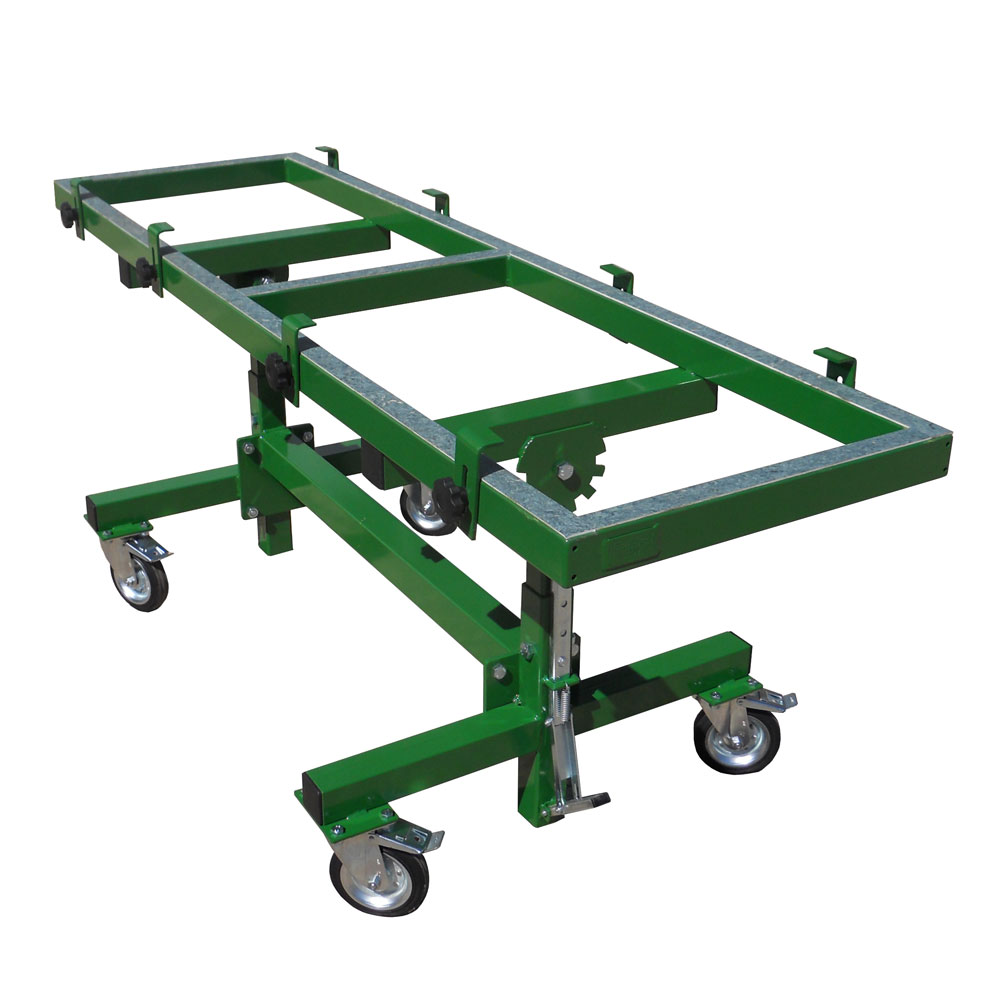

The trolley is an accessory designed and built to move and work kitchen or bathroom countertops.

Description

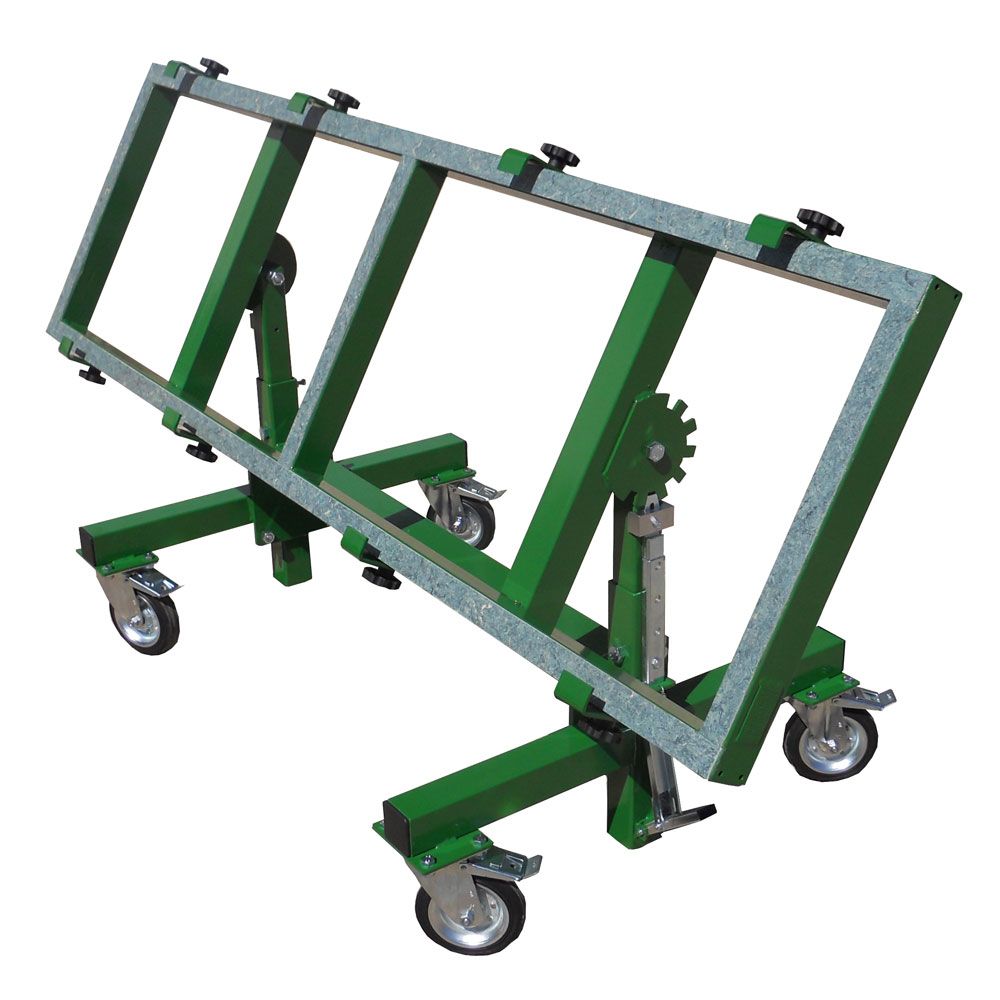

The trolley tilts 180° and is equipped with 4 wheels, swivel with brake diameter 150 with double ball-bearing sliding. The trolley can be adjusted in height by means of a pin.
It is available galvanized or dip-painted. The trolley is built in 2 models or made to measure to meet any need.

The product complies with the regulations:

Machinery Directive 2006/42/CE and following integrations.

Technical characteristics

Basic supporting structure in steel profiles
Tilting structure in steel profiles
Rubber layer on the support base
4 swivel wheels with brake diam. 150

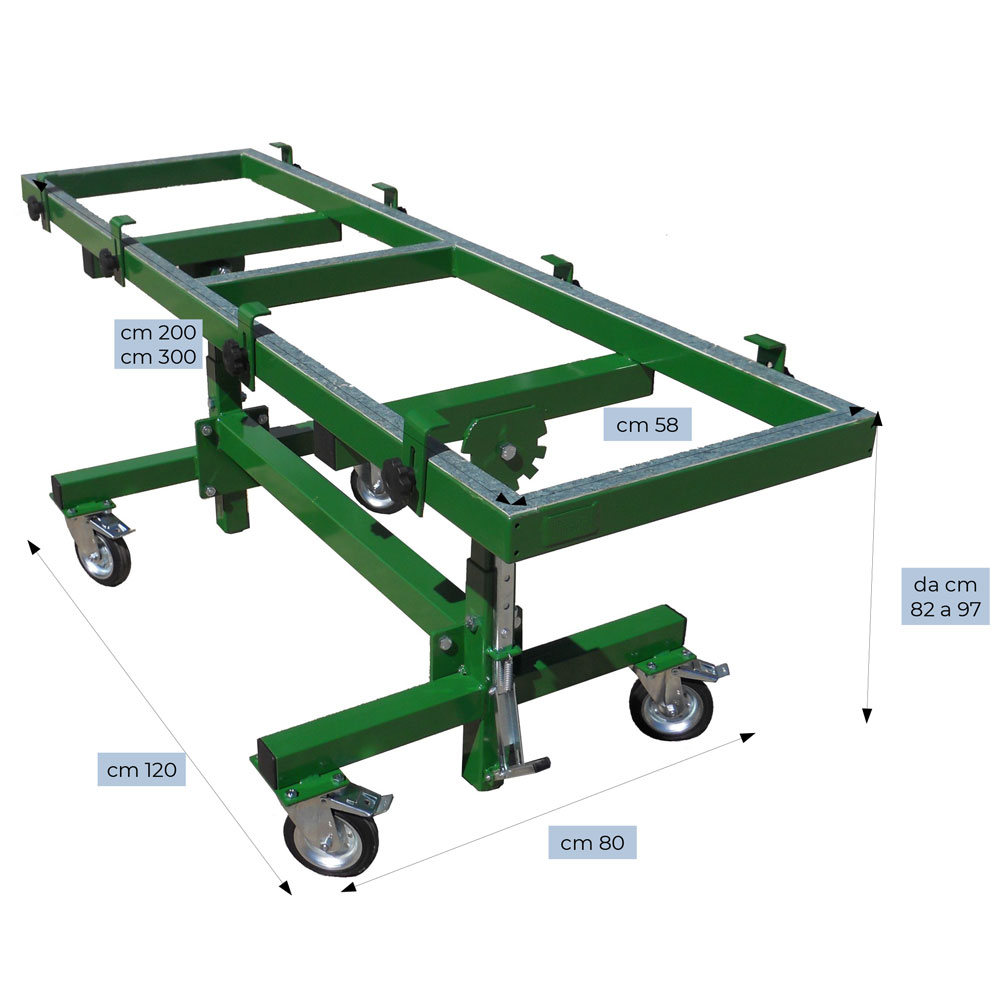

Measures and models

Model 200cm

Maximum utilization load daN(~kg)	400
Length mm	2000
Width at the base mm	800
Width of support surface mm	580
Height min-max mm	820-970
Wheels diameter mm	150
Mass (weight) kg	76

Model 300cm

Maximum utilization load daN(~kg)	400
Length mm	3000
Width at the base mm	800
Width of support surface mm	580
Height min-max mm	820-970
Wheels diameter mm	150
Mass (weight) kg	91
