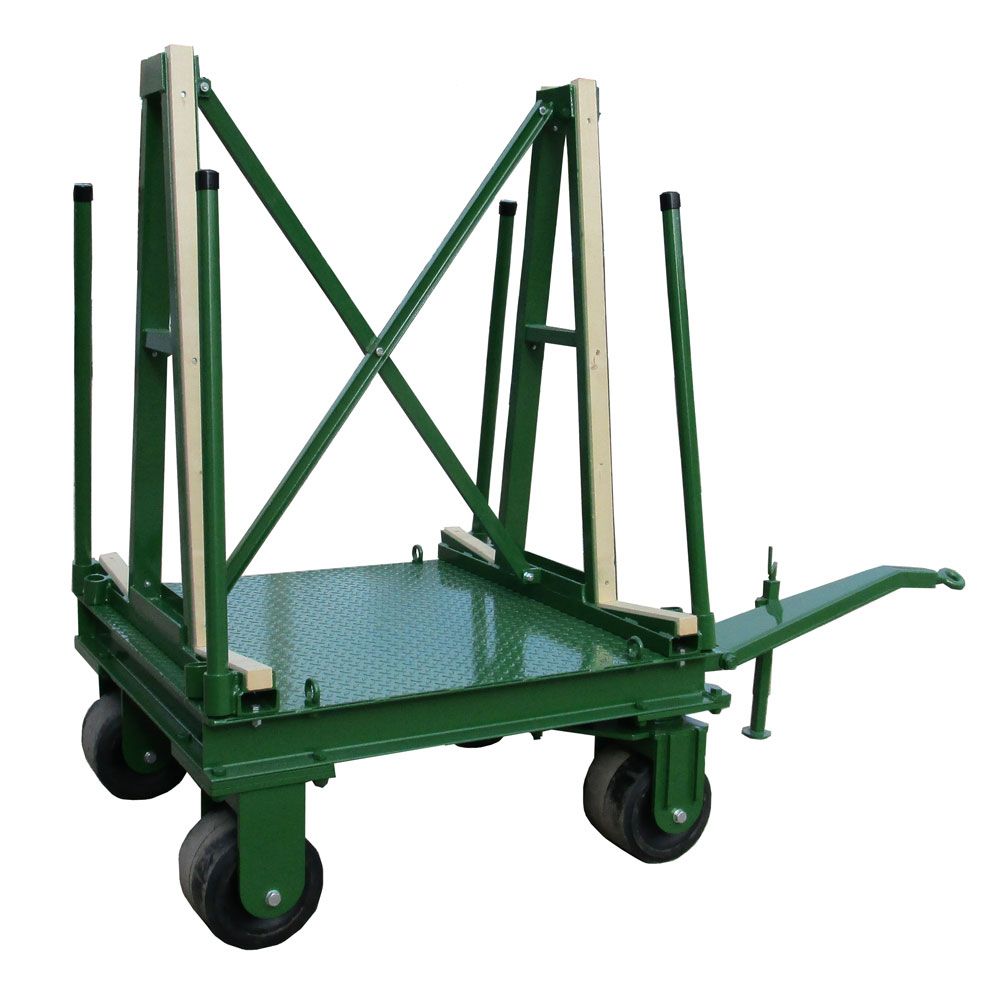

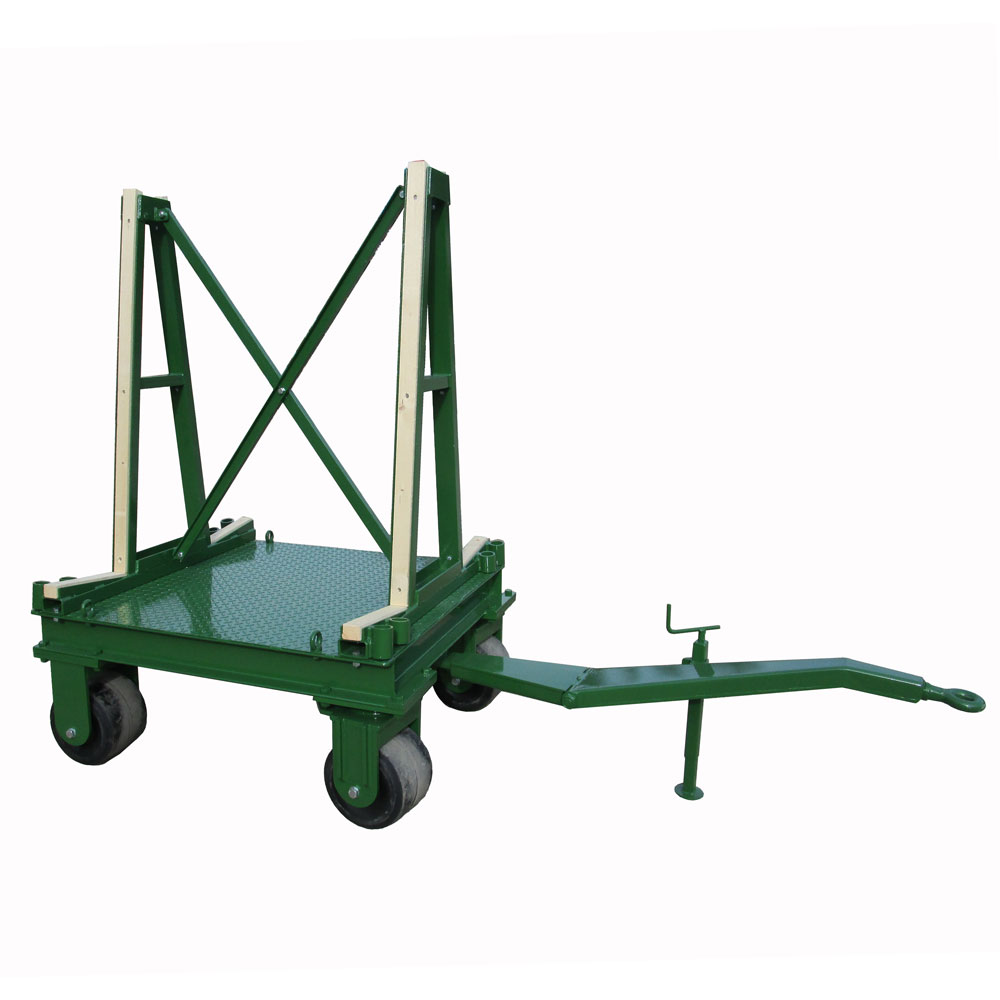

6000kg Slab carrier wagon with stand and safety posts

Art. GF12/02

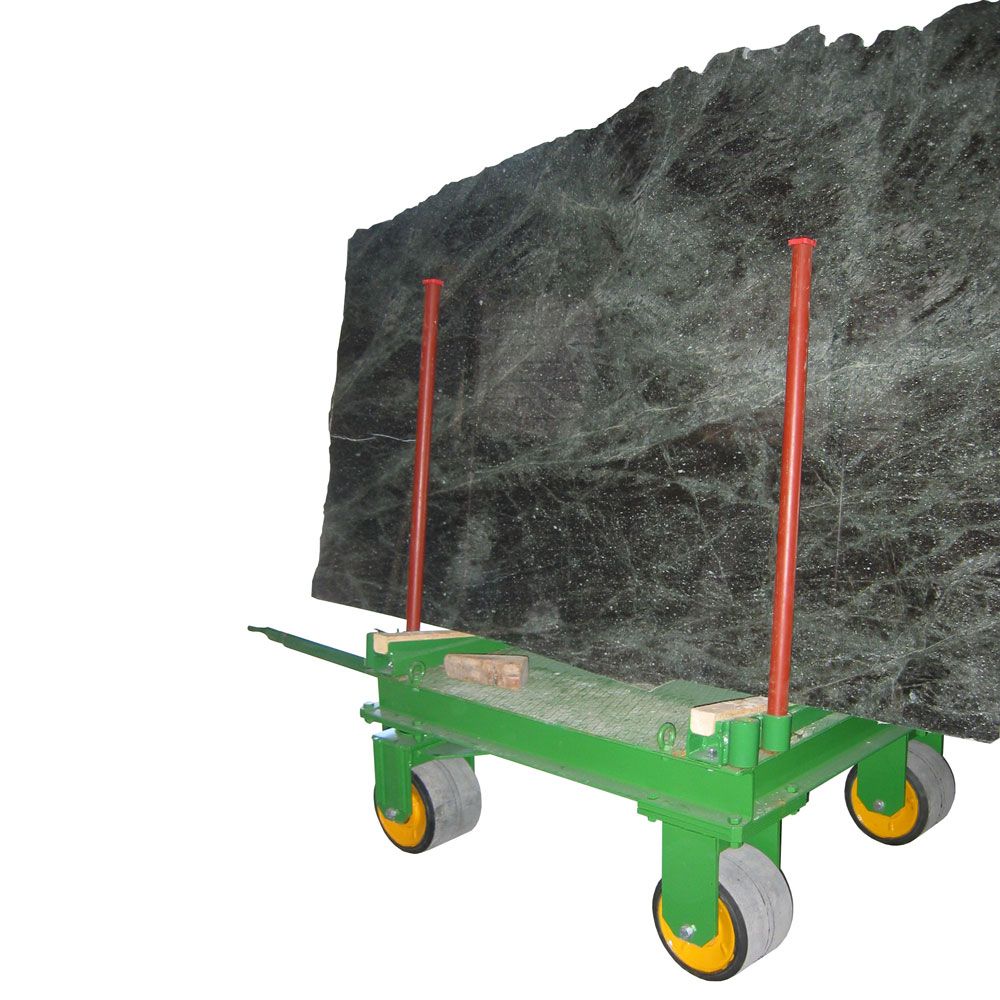

The carriage is an accessory designed and built to handle slabs of marble or stone slab material.

Request a quote

Description

The cart is equipped with a removable stand and 4 safety posts. The base and shoulder is covered with wooden boards. It is built to meet various needs, can be used inside and outside of your laboratories and maneuvered by towing with a lifting trolley.
The Container is built in 1 model. It is available with immersion painting treatment.

The product complies with the regulations:

Machinery Directive 2006/42/CE and following integrations.
UNI EN ISO 12100/1 and 12100/2 standards.
When placed on the market, the container is provided with the CE marking, accompanied by the EC declaration of conformity and the instruction manual.

Technical characteristics

Basic supporting structure in steel profiles
Upper trestle in profiled steel
Transversal reinforcing elements of the side in welded steel profiles
Drawbar for handling and towing
4 solid rubber wheels diam. 300 mm

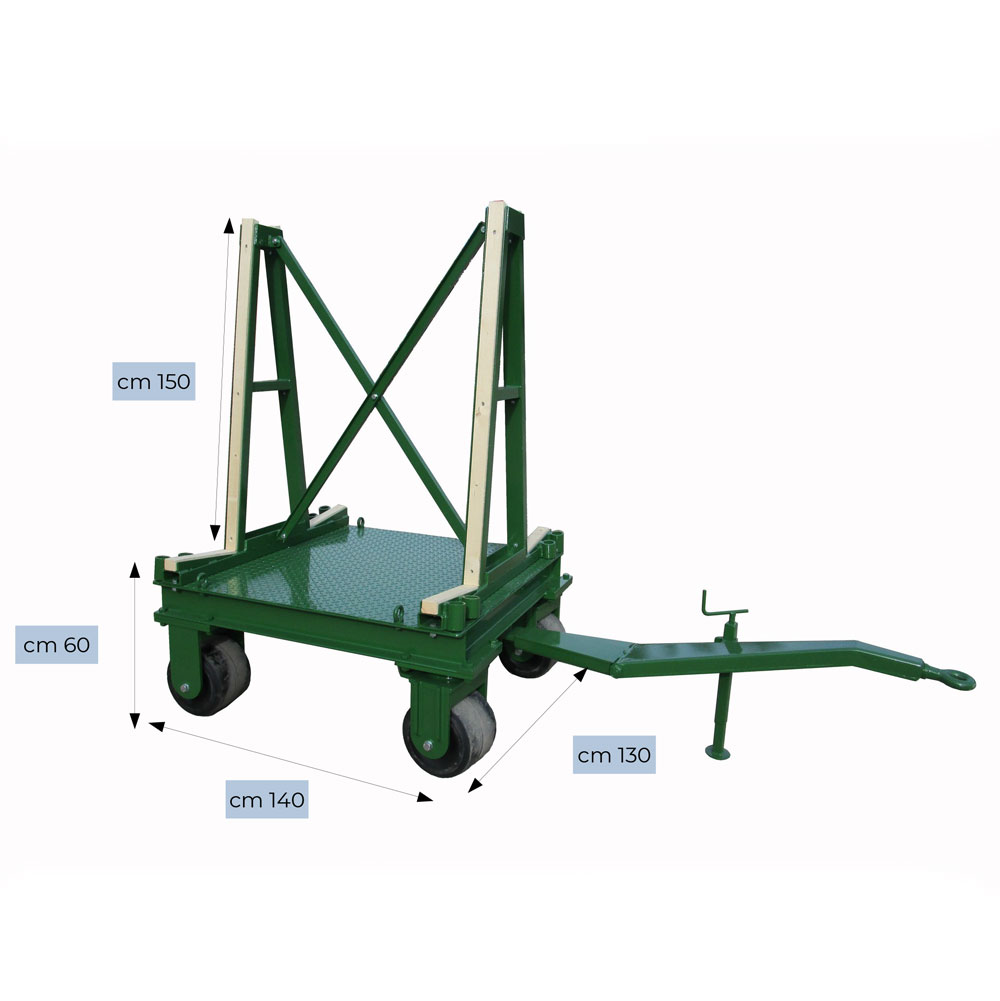

Measures and models

Maximum working load daN(~kg)	6000
Length without drawbar mm	1400
Width at the base mm	1300
Useful load width mm	2x350
Total height mm	2100
Stand height mm	1500
Carriage height mm	600
Wheels diameter mm	300
Mass (weight) kg	570
