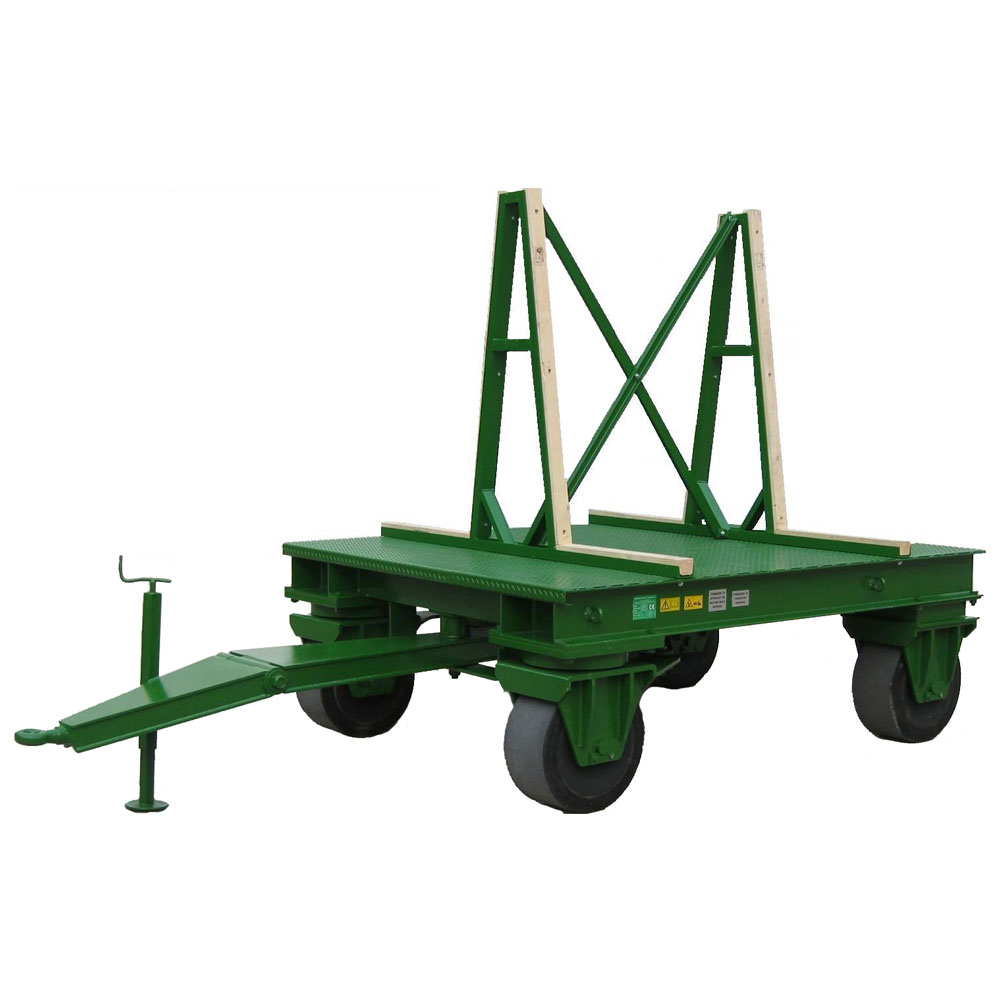

Slab holder wagon with stand capacity 12000kg

Art. GF12/120

The carriage is an accessory designed and built to handle slabs of marble or stone slab material.

Description

The trolley is equipped with an interchangeable stand. It is built to meet various needs, it can be used inside and outside of your laboratories and maneuvered by towing with a lift truck.
The Container is built in 1 model. It is available with immersion painting treatment.

The product complies with the regulations:

Machinery Directive 2006/42/CE and following integrations.
UNI EN ISO 12100/1 and 12100/2 standards.
When placed on the market, the container is provided with the CE marking, accompanied by the EC declaration of conformity and the instruction manual.

Technical characteristics

Basic supporting structure in steel profiles
Upper trestle in profiled steel
Transversal reinforcing elements of the side in welded steel profiles
Drawbar for handling and towing
4 solid rubber wheels diameter 500 mm

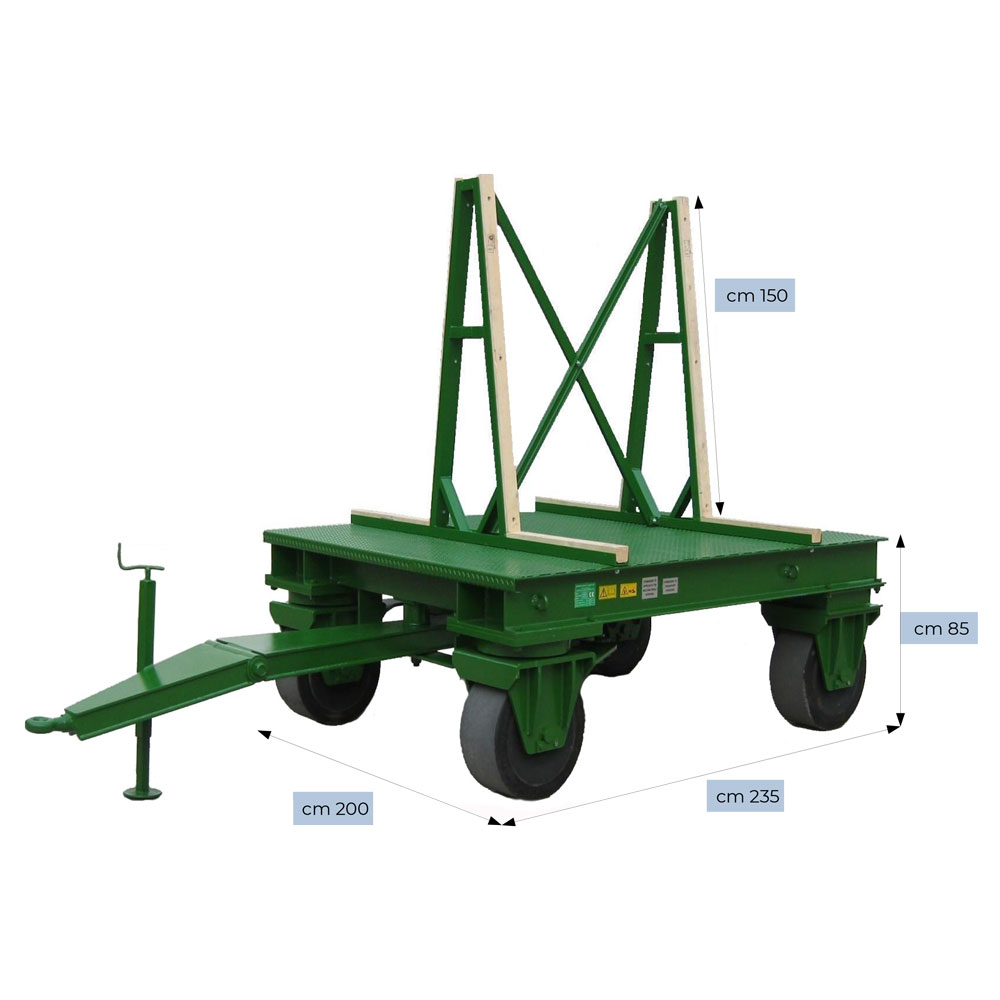

Measures and models

Maximum working load daN(~kg)	12000
Length mm	2350
Width at the base mm	2000
Useful load width mm	2x730
Total height mm	2350
Shoulder lift height mm	1500
Carriage height mm	850
Wheels diameter mm	500
Mass (weight) kg	1695
