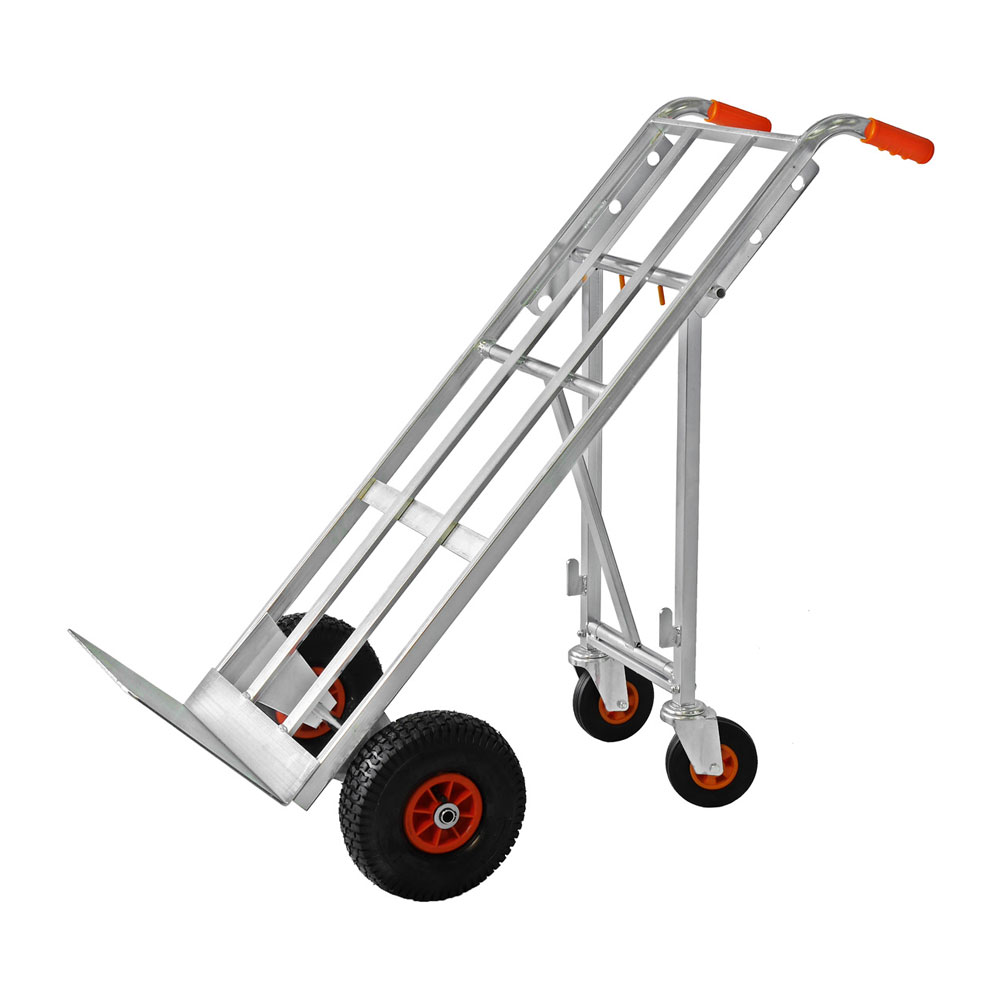

The Trolley is an accessory designed and built to handle slab-shaped loads, suitable for small and medium-sized marble slabs, slab-shaped stone material or loads of various kinds.
The trolley is equipped with 2 pneumatic wheels diameter 260 and 2 swivel wheels diameter 150. The trolley is arranged to work in 3 different positions. It is built to meet the various needs can be used inside and outside of your laboratories and maneuvered with towing by hand. The container is built in 1 model or made to measure to meet any need. It is also available with powder coating treatment.
The product complies with the regulations:
Machinery Directive 2006/42/CE and following integrations.
Technical characteristics
Base supporting structure in steel profiles
Supporting shoulder in steel profiles and sheet metal
2 pneumatic wheels diameter 260
2 swivel wheels diameter 150
Measures and models
It is also possible to supply customized models.
Maximum working load daN(~kg)
300
Length mm
1300
Width at the base mm
600
Full rubber wheels mm
150
Pneumatic wheels diameter mm
260
Mass (weight) kg
28
