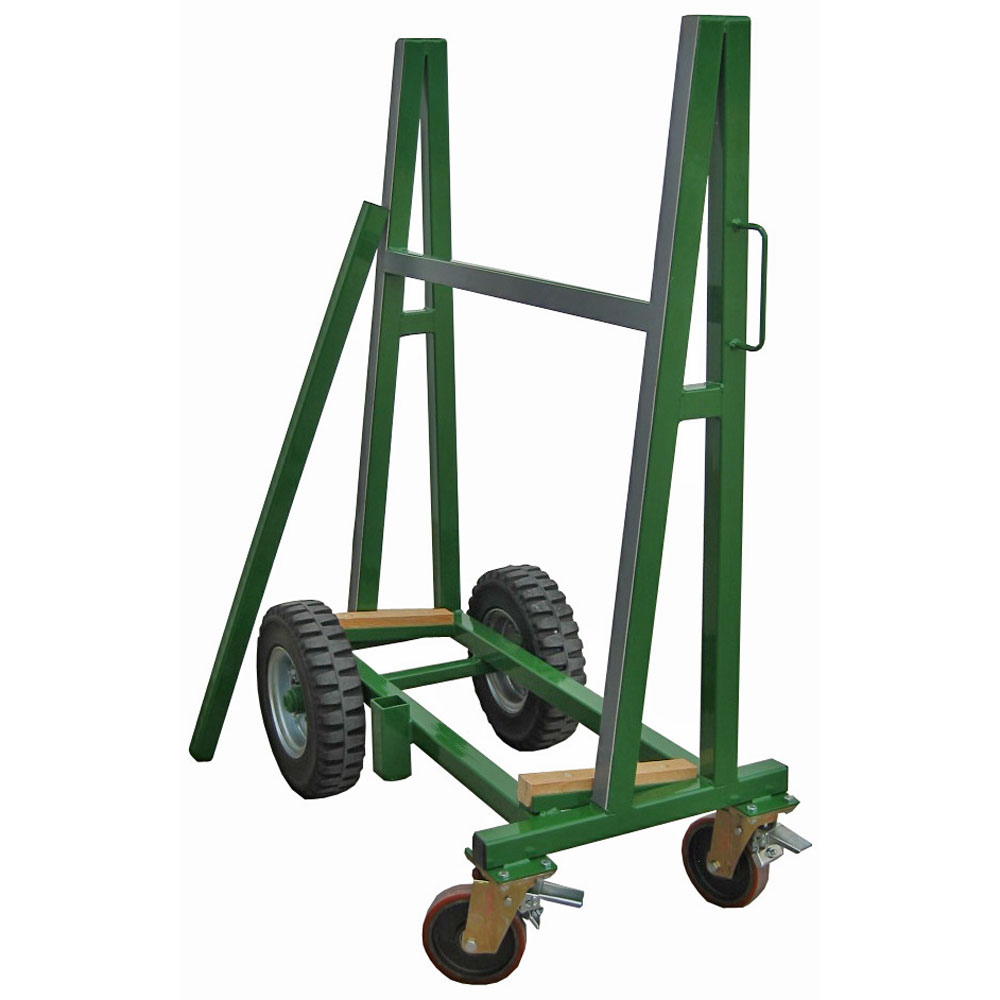

Trolley with solid wheels

Art. GF12/G6

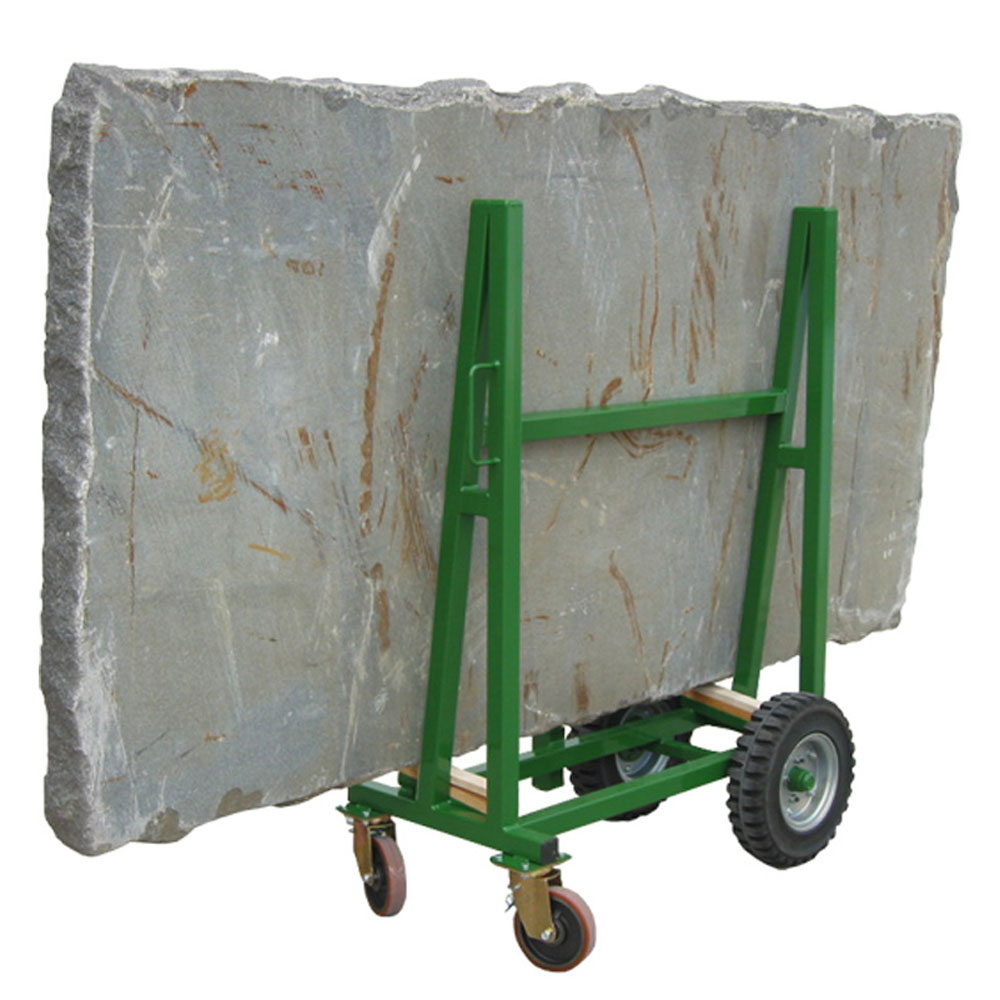

The Trolley is an accessory designed and built to handle slab loads, suitable for marble slabs or stone material.

Description

The trolley is equipped with 4 wheels, 2 swivel with brakes with polyurethane coating and 2 fixed, made of super-elastic solid rubber. The base is covered with wooden slats and the shoulder is covered with rubber.
It is equipped with a safety post to prevent the plates from tipping over. It is built to meet the various needs can be used inside and outside of your laboratories and maneuvered by hand pulling.
The container is built in 1 model or made to measure to meet any need. It is available with galvanizing treatment or immersion painting.

The product complies with the regulations:

Machinery Directive 2006/42/CE and following integrations.

Technical characteristics

Basic load-bearing structure in steel profiles
Side structure upright in steel profiles
Transversal reinforcing elements of the side in welded steel profiles
2 swivel wheels diameter 175 mm with brake
2 solid wheels diam. 400 mm
Rubber strip for material support on the shoulder of the truck
Wooden strip for material support on the base
Anti-tipping safety post

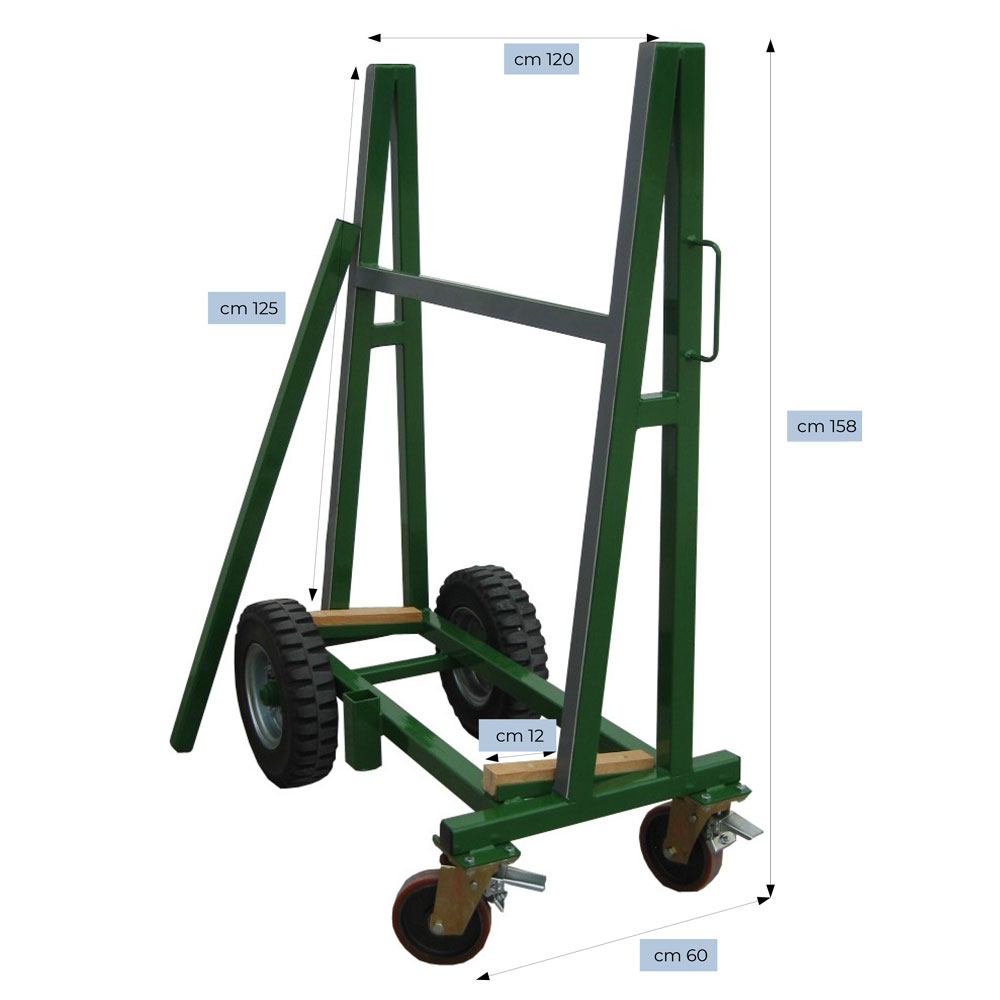

Measures and models

It is also possible to supply made-to-measure models.

Maximum working load daN(~kg)	800
Length mm	1200
Width at the base mm	600
Useful load width mm	130
Total height mm	1580
Shoulder height mm	1280
Mass (weight) kg	100
